Aerostar

Dominator Aerostar
Small footprint. Long endurance. Multi-sensor
Up to 12h
Endurance
240 KG
MTOW
LOS up to 250 km
Com-range
100 kt
Max Speed

With more than 20 years and 250,000 operational flight hours worldwide, the Aerostar is a combat-proven TUAS, that has earnt its leadership position by delivering a reliable, cost-effective, multi-mission solution with operational flexibility – making it ideal for ISR missions. Fully designed and manufactured in-house, Aerostar maintains Aeronautics end-user-centric approach, by modifying the system to meet the specific needs of various customers.

Applications & Payload

    • ISTAR missions – EO/IR with Laser Target Designator (LTD)
    • Maritime patrol radar (MPR) | Automatic Identification System
    • Synthetic Aperture Radar (SAR) and Moving Target Indication radar (MTI)
    • Wide Area Surveillance Payload (WASP)
    • Communications Intelligence (COMINT)
    • Electronic Intelligence (ELINT)
    • Mapping missions imaging systems
    • Other integrated sensors and payloads

Main Features

    • Multi-sensor, multi-mission, multiple payloads
    • Advanced dual Datalink system – LOS, Relay,
    • Superior GPS/INS navigation system (even in GPS-denied areas)
    • Control multiple UAVs simultaneously
    • Automatic Take-Off and Landing (ATOL)
    • Meets the design goals of STANAG 4671
    • Short turnaround time
    • Small logistic footprint and easily integrates into limited airfields

Configuration

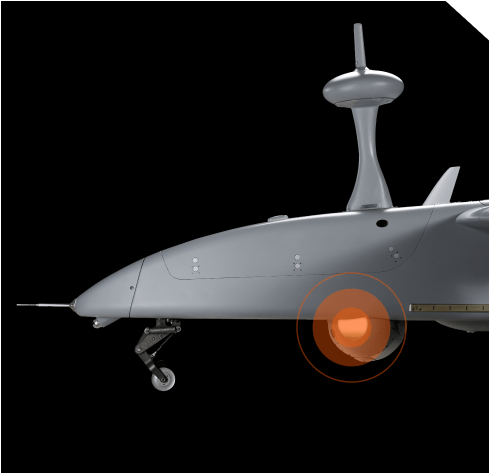

SENSORS
Aeronautics offers an array of Sensors among them:
  • EO/IR
  • SIGINT – Cellular
  • SIGINT – RF
  • EW
  • ELINT
  • COMINT
  • Radar (SAR)
  • Radar (MPR)
  • Radio Relay
  • AIS

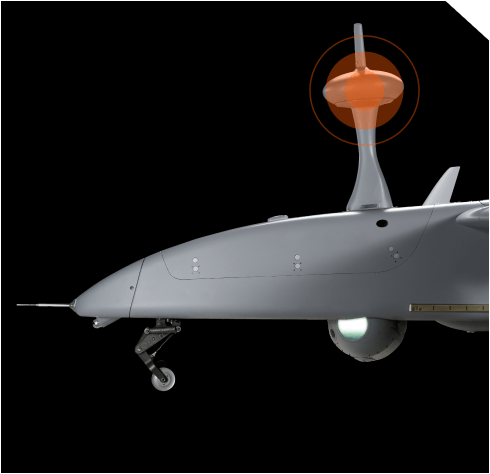

COMMUNICATIONS
Aeronautics offers an array of communication solutions, among them:
  • LOS

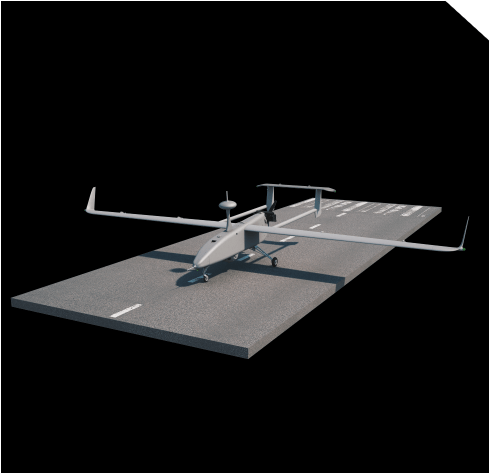

Takeoff Landing
Take-off and Landing options

Specs

MTOW
240 KG
Wingspan
8.7 M
Length
4.5 M
Maximum endurance
up to 12 hrs
Datalink
LOS up to 250 km | Datalink, BLOS - SATCOM Unlimited
Maximum Speed
100 kts
Maximum payload weight
40 kg

Gallery

Media Downloads

pdf Aerostar brochure
