Dominator

Dominator Aerostar
Small footprint. Long endurance. Multi-sensor
Up to 20 hrs
Endurance
1900 kg
MTOW
Up to 250 km
Com-range
120 kt IAS
Max Speed

Proven through hundreds of thousands of manned flight hours and based on the airworthy, certified, DA-42 civil aviation platform with twin engines and full redundancy, the Dominator XP boasts superior ISR capabilities and is the ideal, cost effective MALE platform for surveillance missions.

Applications & Payload

    • ISTAR missions – EO/IR with Laser Target Designator (LTD)
    • Maritime Patrol Radar (MPR) | Automatic Identification System (AIS)
    • Synthetic Aperture Radar (SAR) and Moving Target Indication radar (MTI)
    • Mapping missions imaging systems
    • Wide Area Surveillance Payload (WASP)
    • Communications Intelligence (COMINT)
    • Electronic Intelligence (ELINT)
    • Electronic Warfare (EW) | MAD
    • Other integrated sensors and user payloads

Main Features

    • Multi-sensor, multi-mission system
    • Twin engine, high speed
    • Advanced dual Datalink system – LOS, BLOS, Relay
    • Superior GPS/INS navigation system (including GPS-denied areas)
    • High payload capacity and power availability
    • Options for internal & external payload integration
    • Superior airworthiness, all-weather flight capability
    • Meets the design goals of STANAG 4671
    • Automatic Take-Off and Landing (ATOL)
    • Civil aviation aircraft – easy to integrate, worldwide maintenance support

Configuration

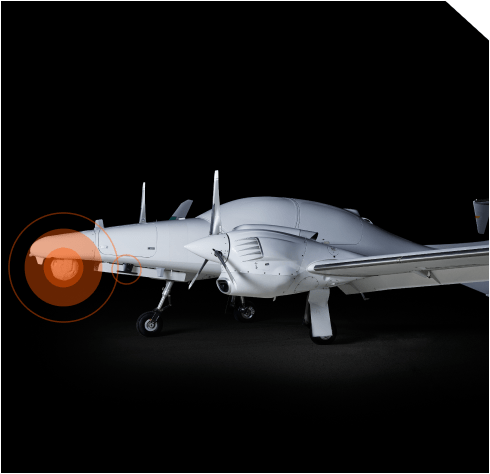

SENSORS
Aeronautics offers an array of Sensors among them:
  • EO/IR
  • SIGINT – Cellular
  • SIGINT – RF
  • EW
  • ELINT
  • COMINT
  • Radar (SAR)
  • Radar (MPR)
  • Radio Relay
  • AIS

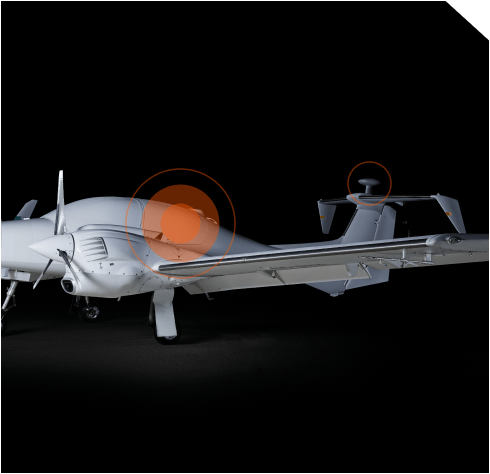

COMMUNICATIONS
Aeronautics offers an array of communication solutions, among them:
  • LOS
  • SATCOM

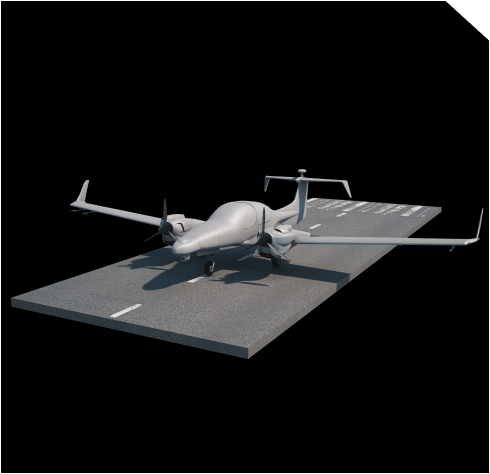

Takeoff Landing
Take-off and Landing options

Specs

MTOW
1900 KG
Wingspan
13.5 M
Length
8.56 M
Maximum endurance
up to 20 hrs
Datalink
LOS up to 250 km | Datalink, BLOS - SATCOM unlimited
Maximum Speed
120 kt IAS
Maximum payload weight
373 kg

Gallery

Media Downloads

pdf Dominator brochure
